Process of Creating Giant Copper Turtle

The attached gallery of images depicts the various steps in fabricating the giant turtle, TT.


Full scale working sketch of turtle

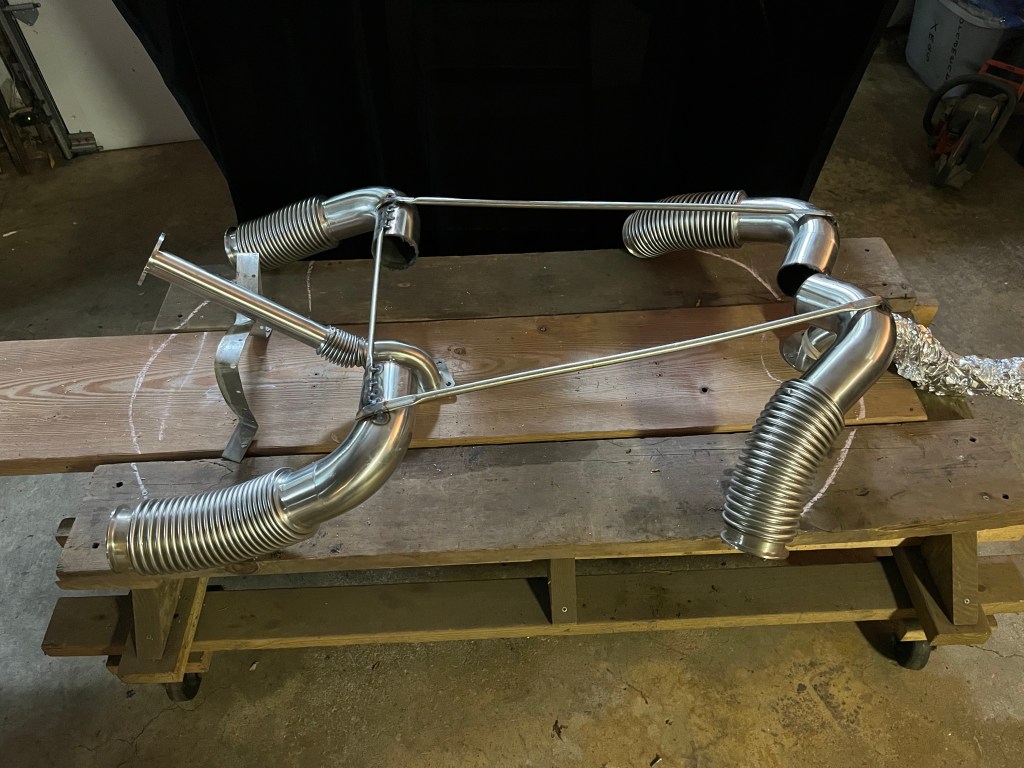

Stainless steel welded armature
Stainless steel welded armature

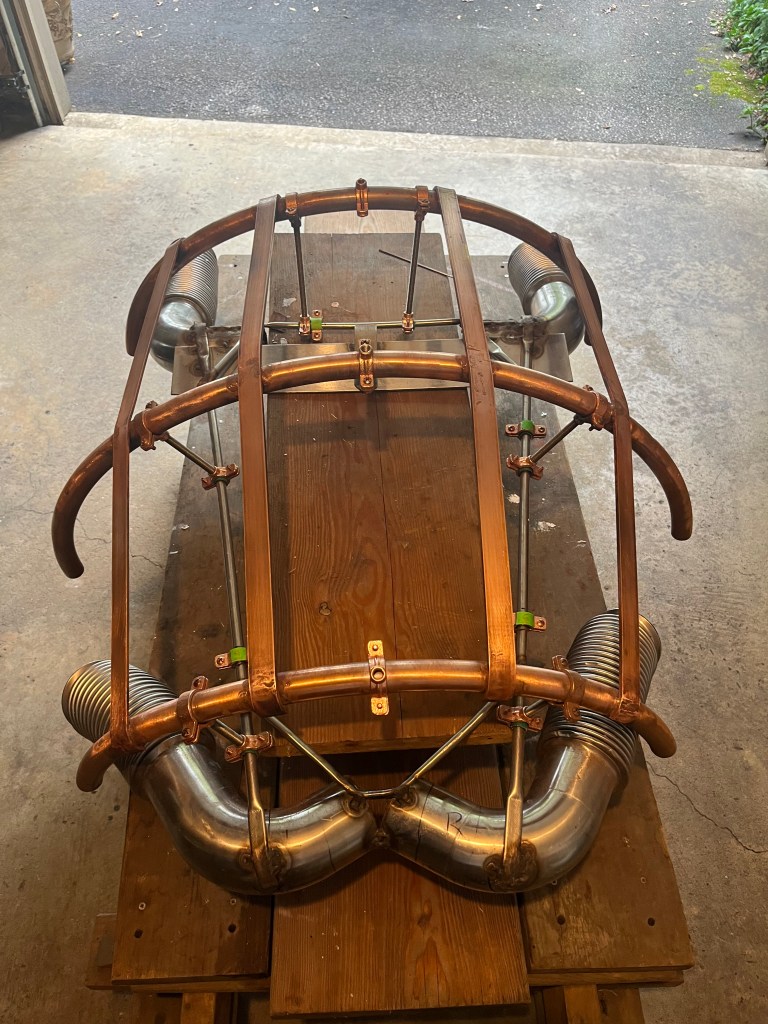

Armature with copper ribbing
Armature with attachment hardware
Scute layout in paper

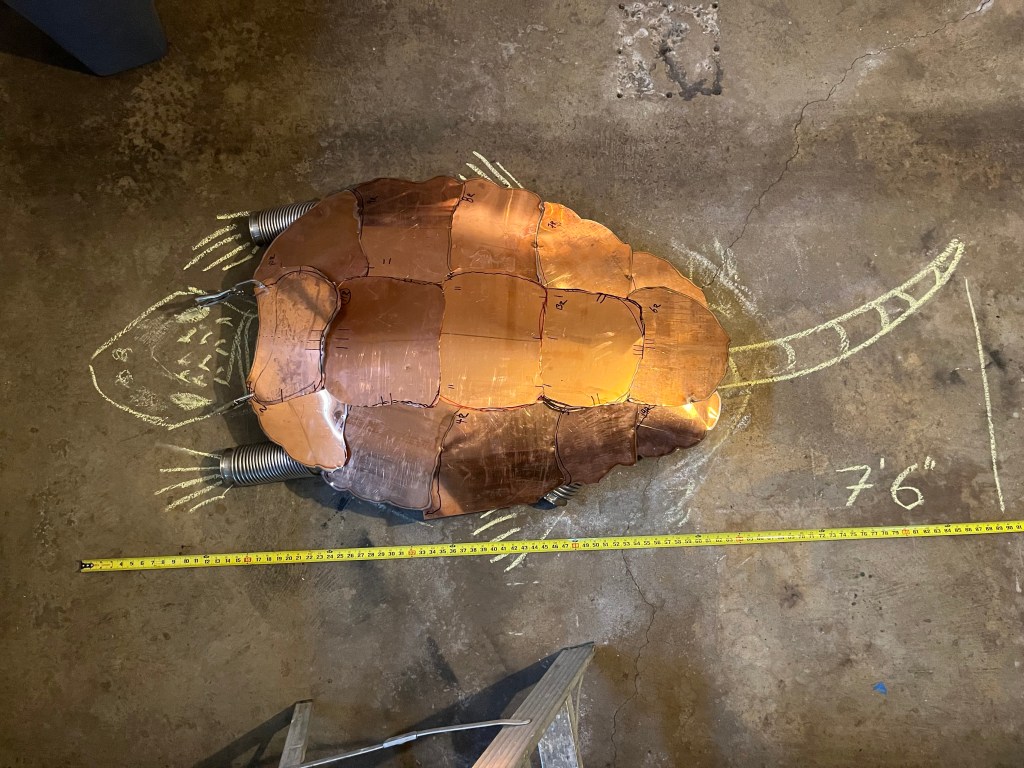

Copper scutes laid out

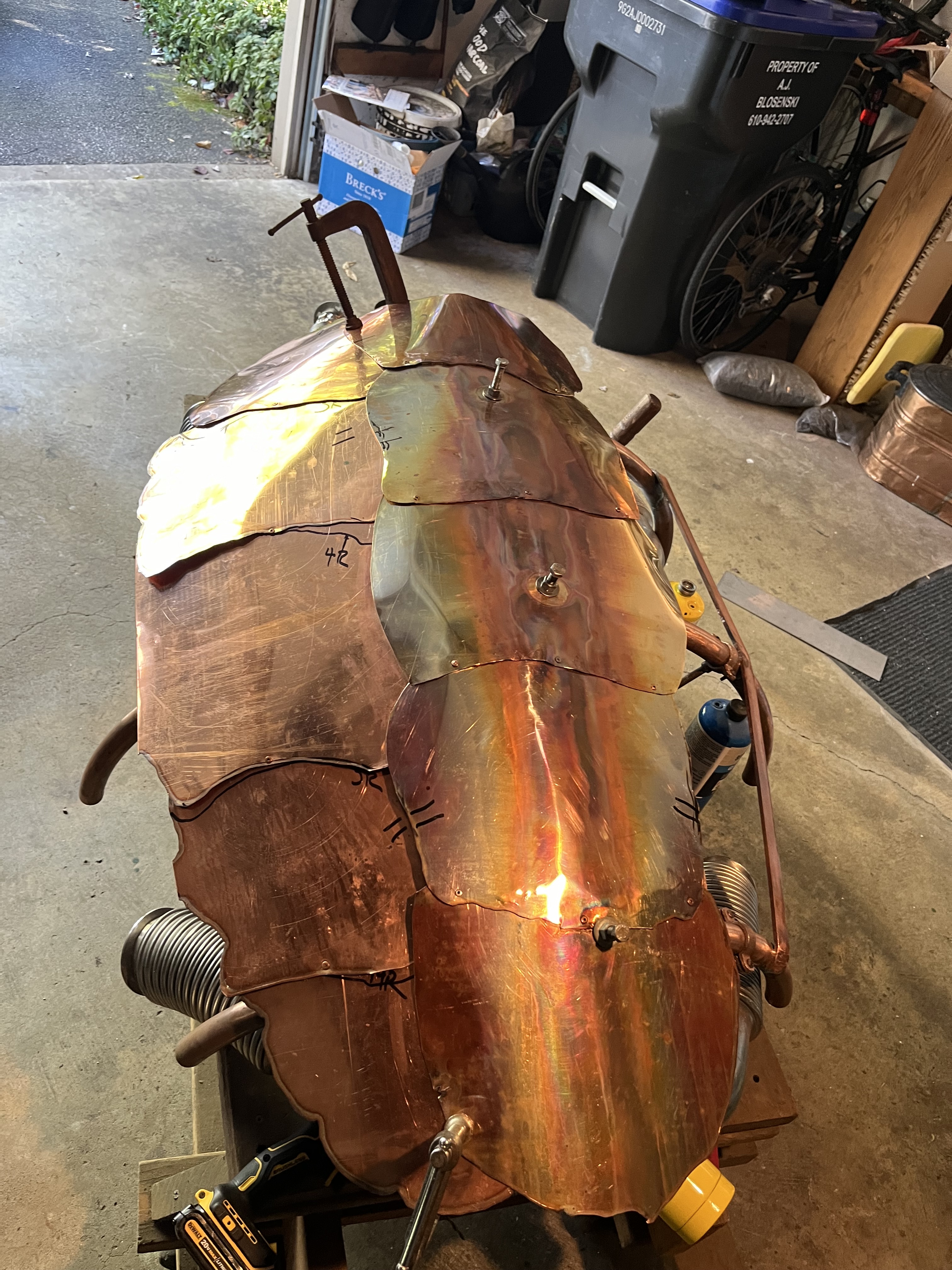

Scutes attached
Scutes attached
Scutes layout

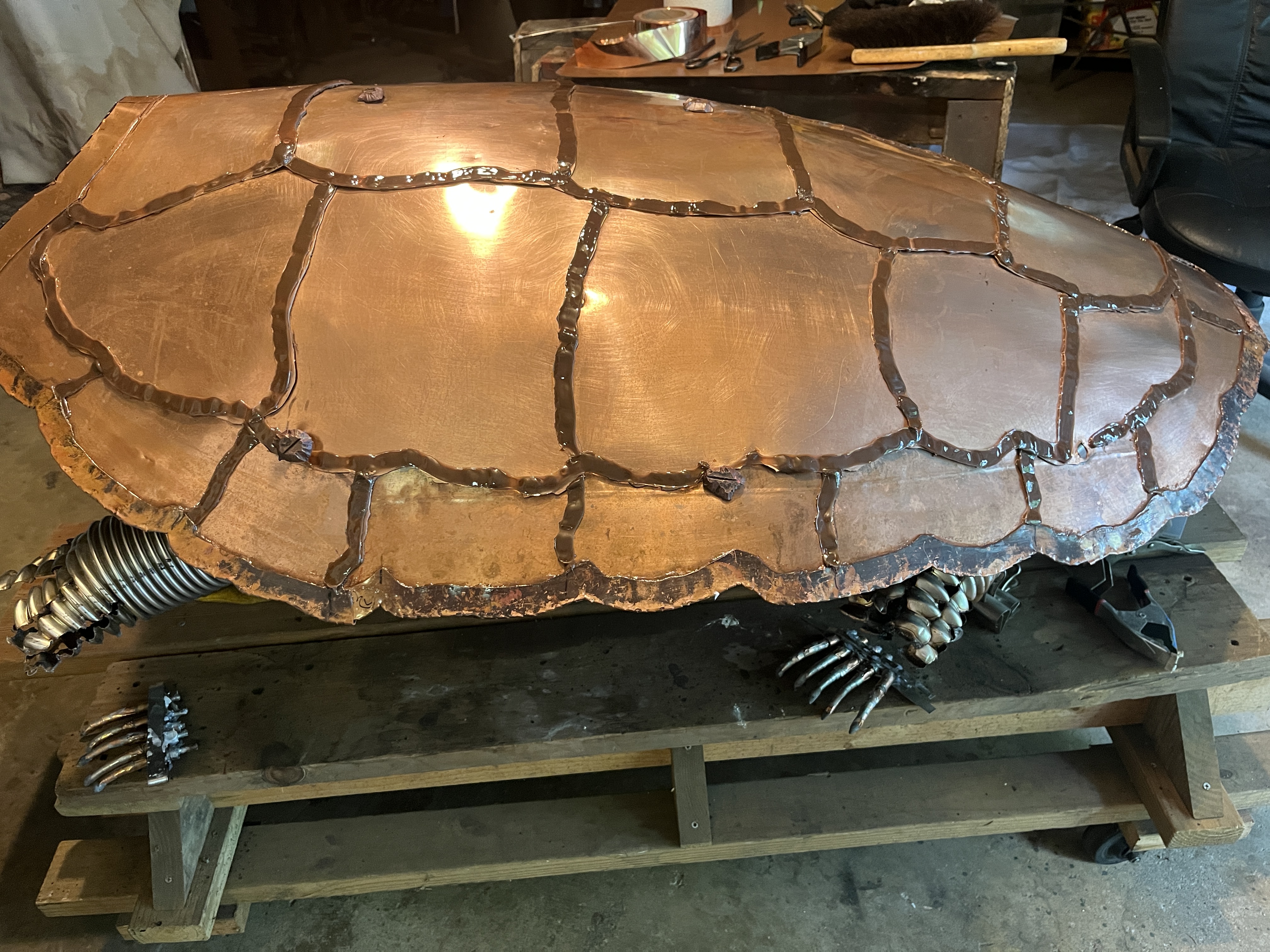

Scutes and carapace fully assembled

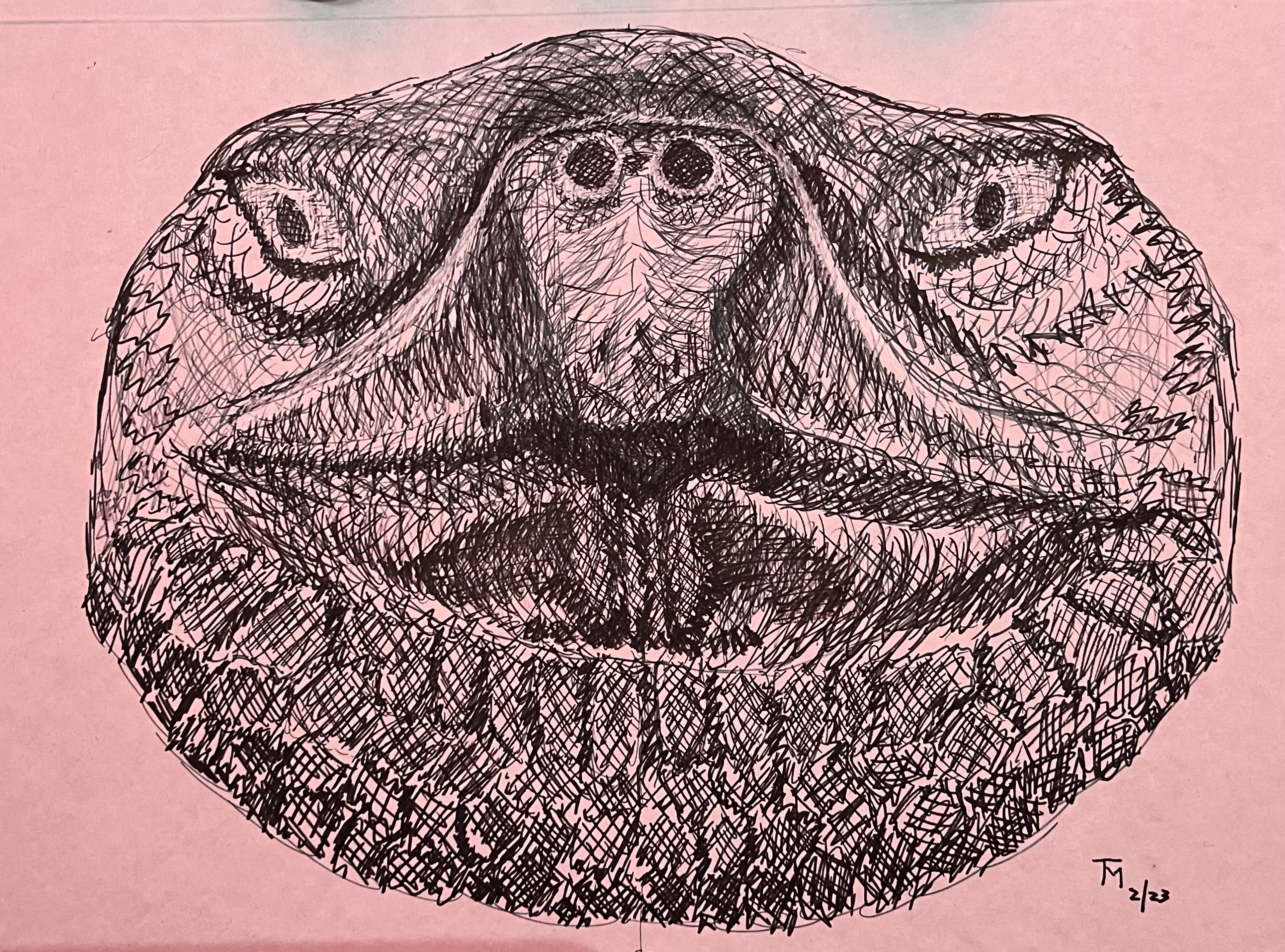

Head sketch

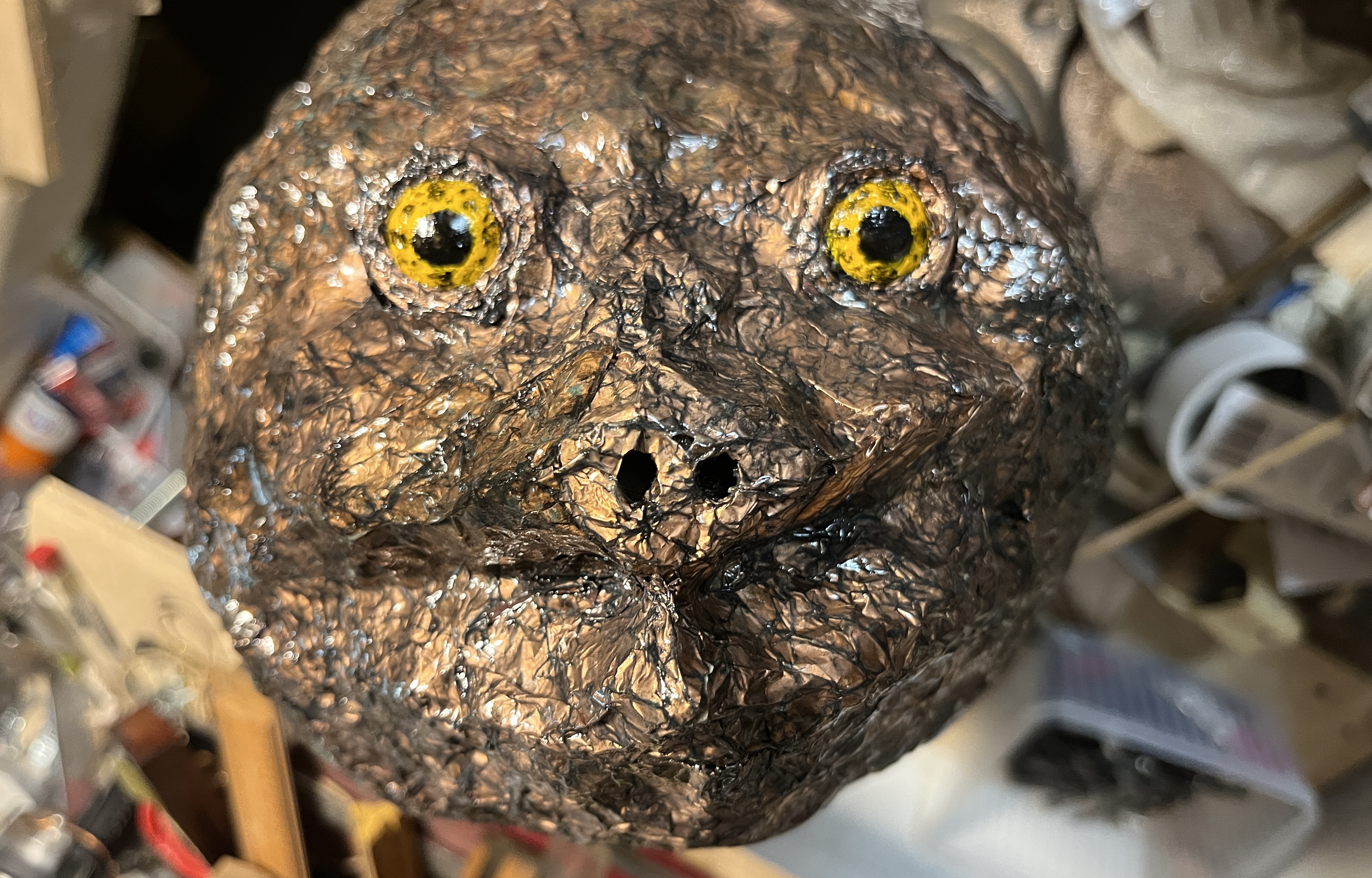

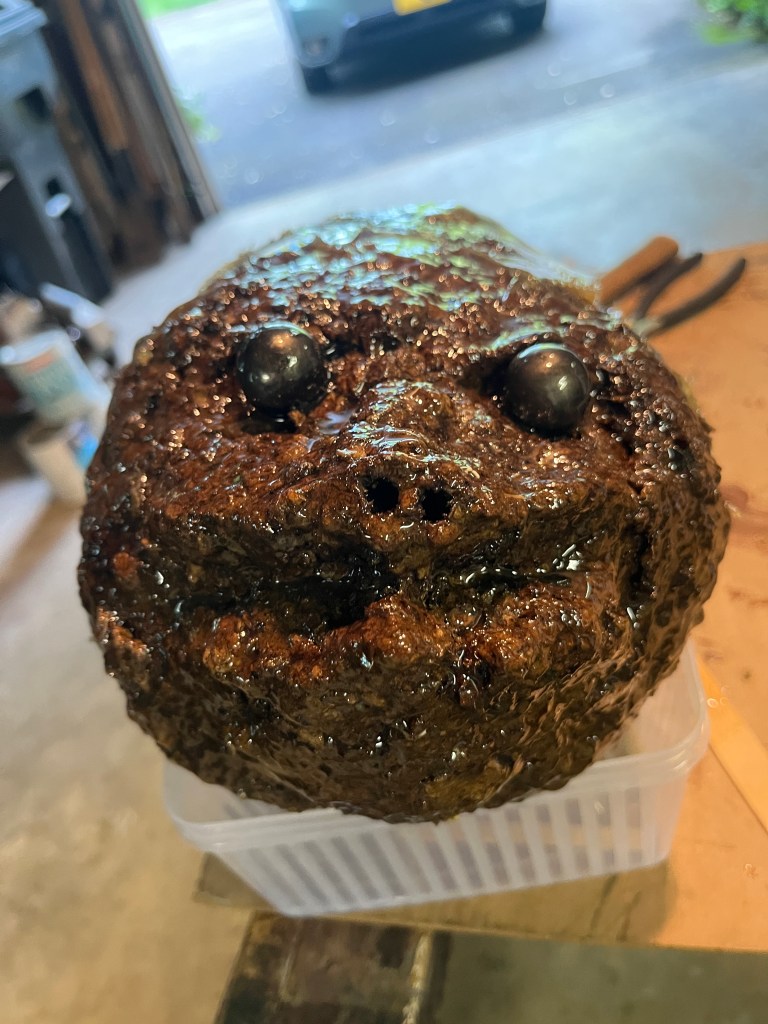

Head before fiberglass and copper applied
Copper foil on head

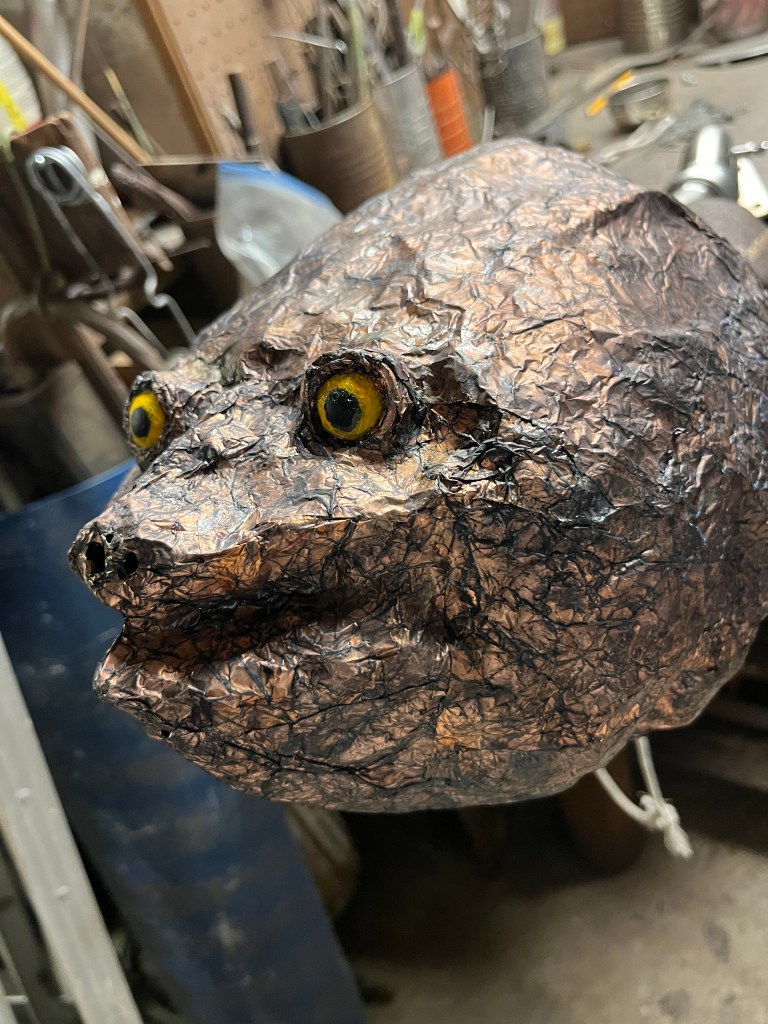

Copper foil on head w/ finish lacquer

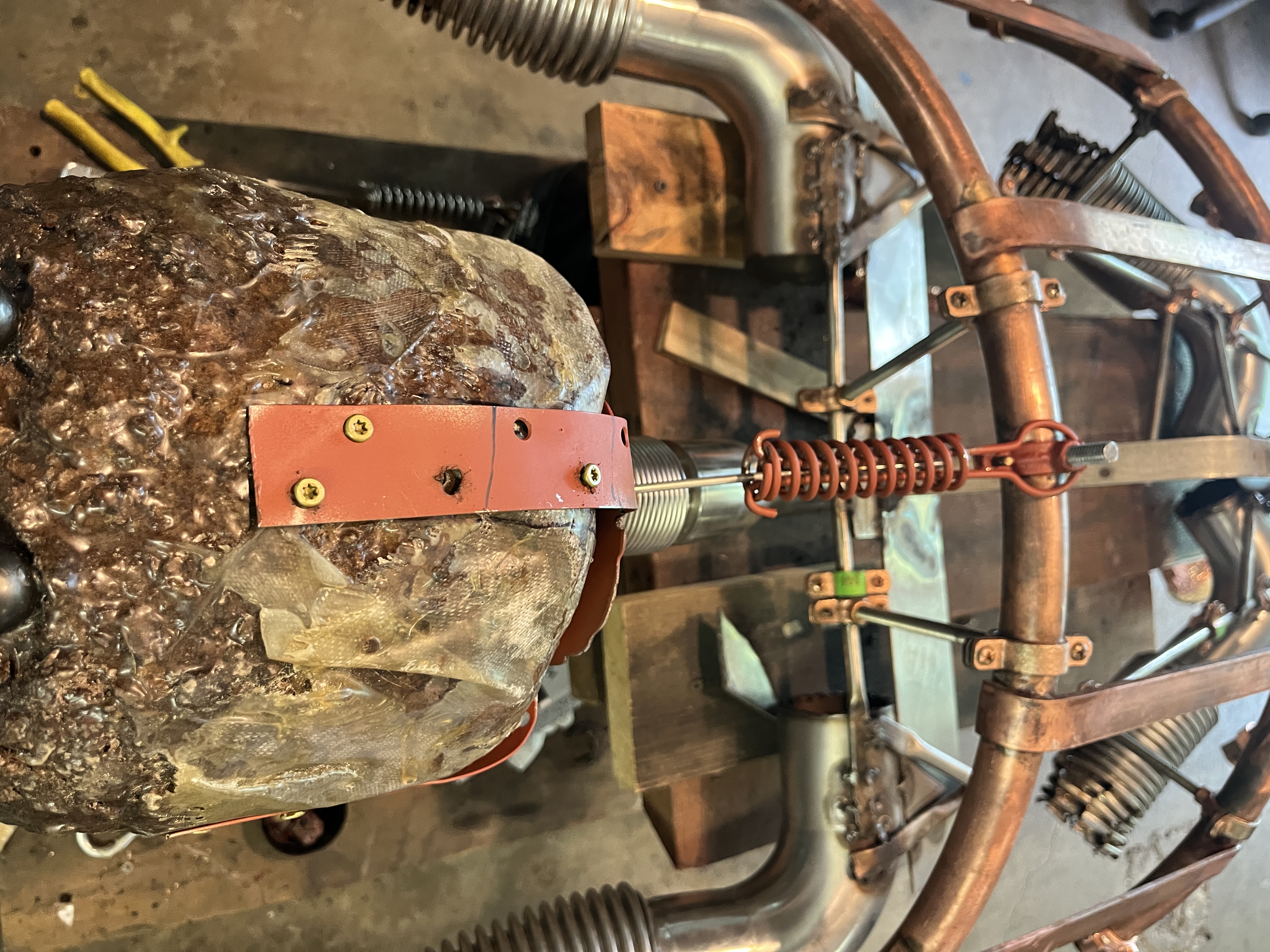

Spring mechanism allowing animatronic head movement
Claw sketch

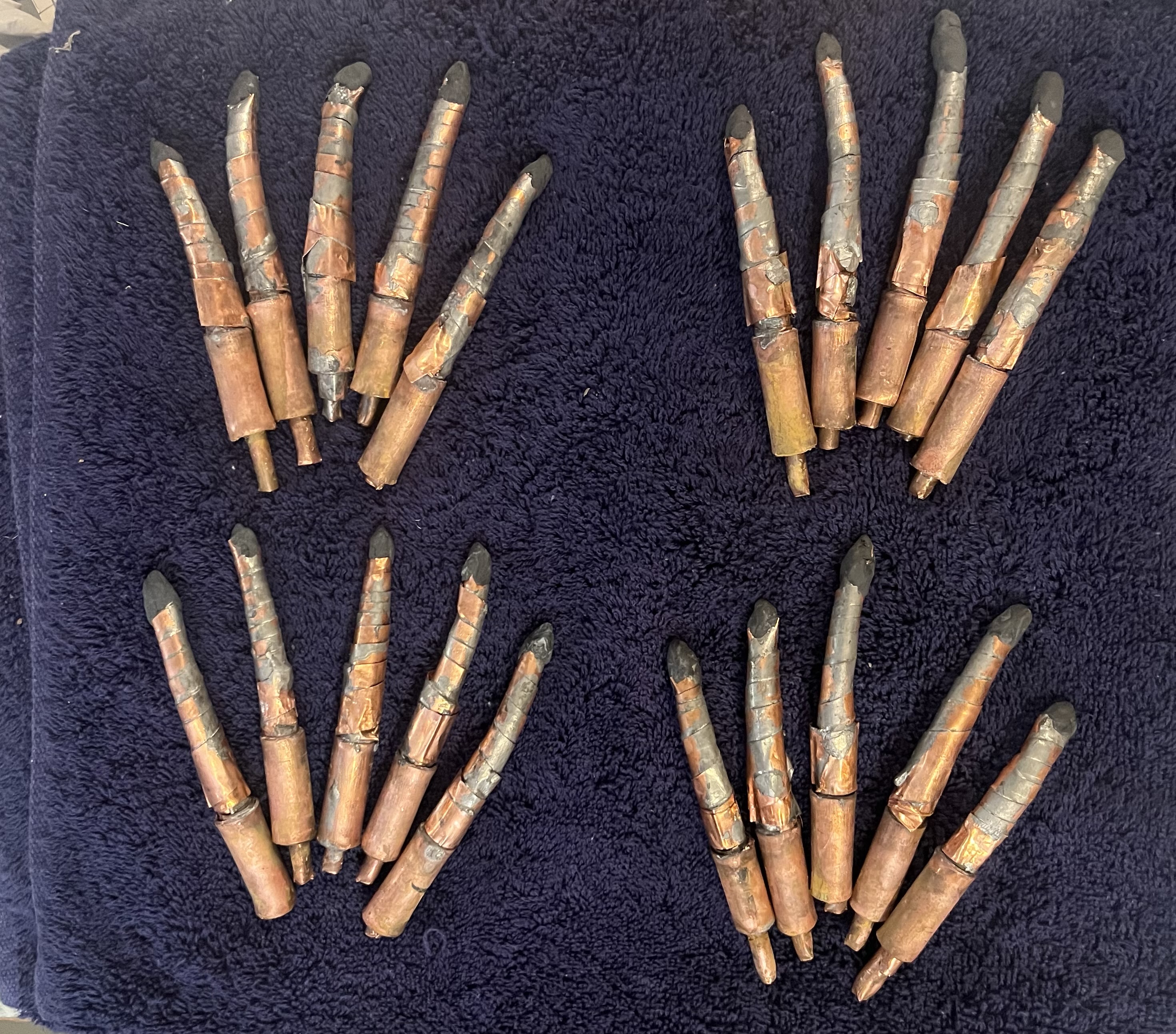

Claws made of copper
Claws
Claws (painted) and legs w/ etched copper foil wrapping
Copper foil (before etching) for head, legs and tail skin
Patina etching technique and chemical formula
Patina test for shell
Assembled shell before etching
Shell encased in etching chemicals

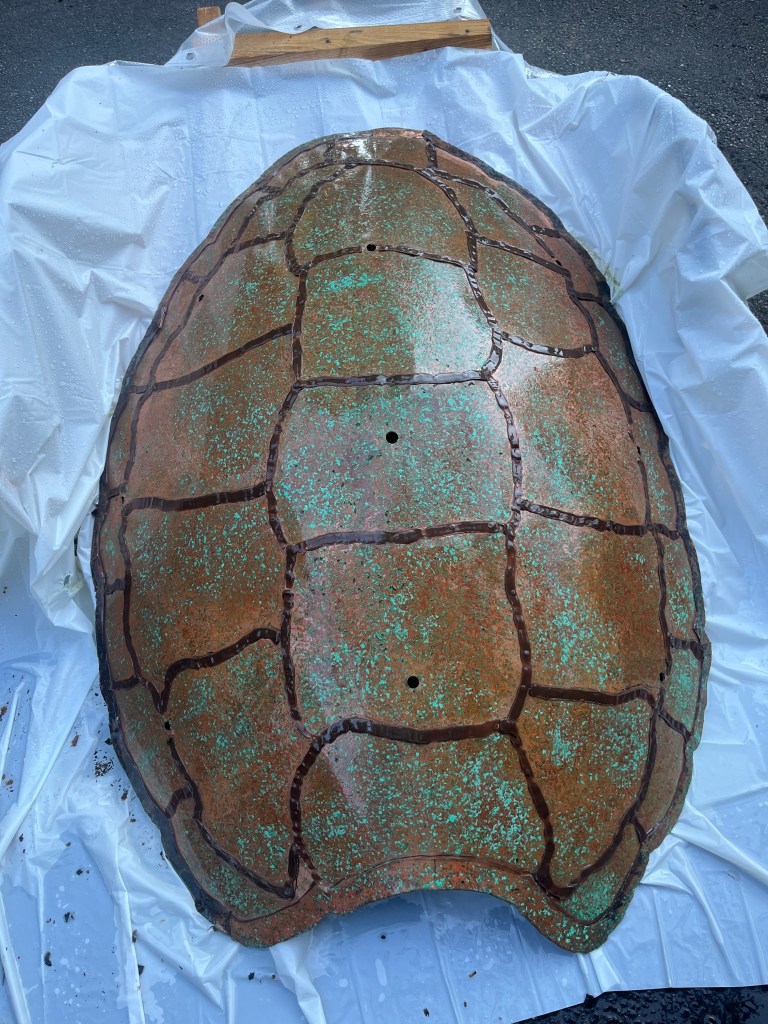

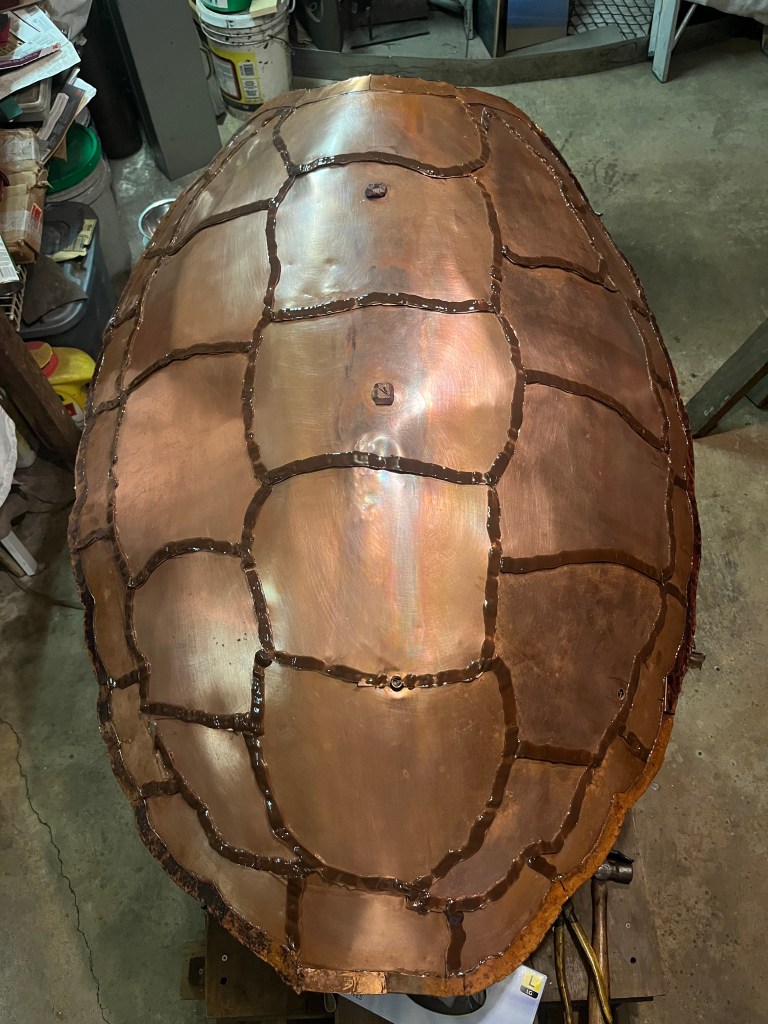

Shell after etching chemicals removed
Copper turtle installed
